矩阵

表示矩阵的Mobject。

示例

示例：MatrixExamples

from manim import *

class MatrixExamples(Scene):
    def construct(self):
        m0 = Matrix([["\\pi", 0], [-1, 1]])
        m1 = IntegerMatrix([[1.5, 0.], [12, -1.3]],
            left_bracket="(",
            right_bracket=")")
        m2 = DecimalMatrix(
            [[3.456, 2.122], [33.2244, 12.33]],
            element_to_mobject_config={"num_decimal_places": 2},
            left_bracket=r"\{",
            right_bracket=r"\}")
        m3 = MobjectMatrix(
            [[Circle().scale(0.3), Square().scale(0.3)],
            [MathTex("\\pi").scale(2), Star().scale(0.3)]],
            left_bracket="\\langle",
            right_bracket="\\rangle")
        g = Group(m0, m1, m2, m3).arrange_in_grid(buff=2)
        self.add(g)

class MatrixExamples(Scene):
    def construct(self):
        m0 = Matrix([["\\pi", 0], [-1, 1]])
        m1 = IntegerMatrix([[1.5, 0.], [12, -1.3]],
            left_bracket="(",
            right_bracket=")")
        m2 = DecimalMatrix(
            [[3.456, 2.122], [33.2244, 12.33]],
            element_to_mobject_config={"num_decimal_places": 2},
            left_bracket=r"\{",
            right_bracket=r"\}")
        m3 = MobjectMatrix(
            [[Circle().scale(0.3), Square().scale(0.3)],
            [MathTex("\\pi").scale(2), Star().scale(0.3)]],
            left_bracket="\\langle",
            right_bracket="\\rangle")
        g = Group(m0, m1, m2, m3).arrange_in_grid(buff=2)
        self.add(g)

类

小数矩阵	在屏幕上显示带有小数项的矩阵的mobject。
整数矩阵	在屏幕上显示带有整数项的矩阵的mobject。
矩阵	在屏幕上显示矩阵的mobject。
Mobject矩阵	在屏幕上显示mobject项的矩阵的mobject。

函数

get_det_text(matrix, determinant=None, background_rect=False, initial_scale_factor=2)

创建行列式的辅助函数。

参数:

• matrix (Matrix) – 要创建行列式的矩阵

• determinant (int | str | None) – 矩阵行列式的值

• background_rect (bool) – 背景矩形

• initial_scale_factor (float) – 文本det相对于矩阵的缩放比例

返回:

包含行列式的VGroup

返回类型:

V组

示例

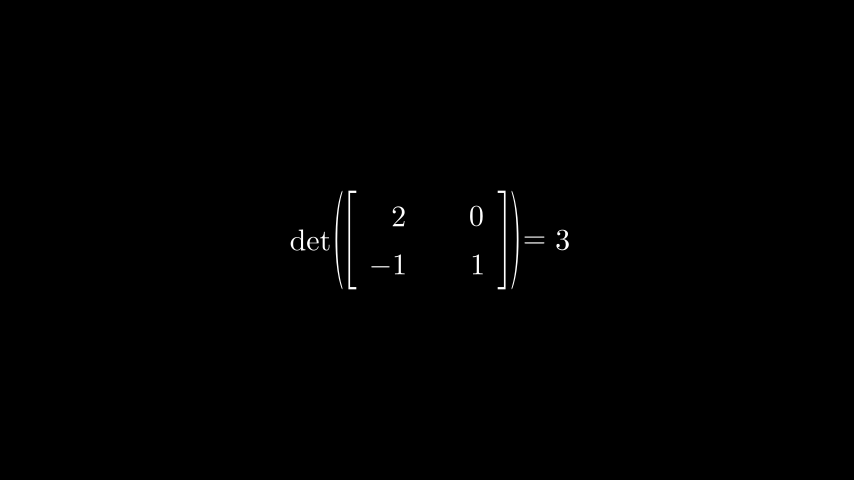

示例：DeterminantOfAMatrix

from manim import *

class DeterminantOfAMatrix(Scene):
    def construct(self):
        matrix = Matrix([
            [2, 0],
            [-1, 1]
        ])

        # scaling down the `det` string
        det = get_det_text(matrix,
                    determinant=3,
                    initial_scale_factor=1)

        # must add the matrix
        self.add(matrix)
        self.add(det)

class DeterminantOfAMatrix(Scene):
    def construct(self):
        matrix = Matrix([
            [2, 0],
            [-1, 1]
        ])

        # scaling down the `det` string
        det = get_det_text(matrix,
                    determinant=3,
                    initial_scale_factor=1)

        # must add the matrix
        self.add(matrix)
        self.add(det)

matrix_to_mobject(matrix)

matrix_to_tex_string(matrix)
