SurroundingRectangle¶

限定名称: manim.mobject.geometry.shape\_matchers.SurroundingRectangle

class SurroundingRectangle(*mobjects, color=ManimColor('#FFFF00'), buff=0.1, corner_radius=0.0, **kwargs)[source]¶

基类: RoundedRectangle

一个包围着 Mobject 的矩形

示例

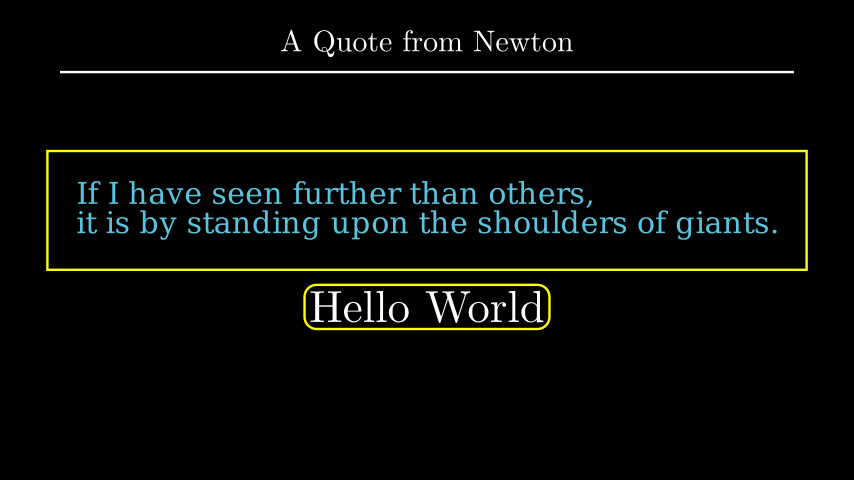

示例: SurroundingRectExample ¶

from manim import *

class SurroundingRectExample(Scene):
    def construct(self):
        title = Title("A Quote from Newton")
        quote = Text(
            "If I have seen further than others, \n"
            "it is by standing upon the shoulders of giants.",
            color=BLUE,
        ).scale(0.75)
        box = SurroundingRectangle(quote, color=YELLOW, buff=MED_LARGE_BUFF)

        t2 = Tex(r"Hello World").scale(1.5)
        box2 = SurroundingRectangle(t2, corner_radius=0.2)
        mobjects = VGroup(VGroup(box, quote), VGroup(t2, box2)).arrange(DOWN)
        self.add(title, mobjects)

class SurroundingRectExample(Scene):
    def construct(self):
        title = Title("A Quote from Newton")
        quote = Text(
            "If I have seen further than others, \n"
            "it is by standing upon the shoulders of giants.",
            color=BLUE,
        ).scale(0.75)
        box = SurroundingRectangle(quote, color=YELLOW, buff=MED_LARGE_BUFF)

        t2 = Tex(r"Hello World").scale(1.5)
        box2 = SurroundingRectangle(t2, corner_radius=0.2)
        mobjects = VGroup(VGroup(box, quote), VGroup(t2, box2)).arrange(DOWN)
        self.add(title, mobjects)

方法

属性

`animate (动画)`	用于动画化 `self` 的任何方法的应用。
`animation_overrides (动画覆盖)`
`颜色`
`depth (深度)`	mobject 的深度。
`fill_color (填充颜色)`	如果存在多种颜色（用于渐变），则返回第一种颜色
`height (高度)`	mobject 的高度。
`n_points_per_curve (每条曲线的点数)`
`sheen_factor (光泽因子)`
`stroke_color (描边颜色)`
`width (宽度)`	mobject 的宽度。

参数:

mobjects （Mobject）
color （ParsableManimColor）
buff (浮点数)
corner_radius （浮点数）
kwargs （任意类型）

_original__init__(*mobjects, color=ManimColor('#FFFF00'), buff=0.1, corner_radius=0.0, **kwargs)¶

初始化自身。有关准确签名，请参阅 help(type(self))。

参数:

mobjects （Mobject）
color （ParsableManimColor）
buff (浮点数)
corner_radius （浮点数）
kwargs （任意类型）

返回类型:

无
